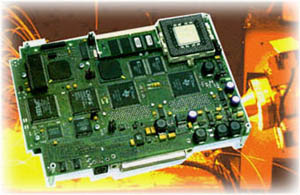

| |  | Bus Interface  | PCMCIA: two dual-Port PCI-to-PCI Card™/CardBus Controller unit | |  | | CPU Type & Speed | Low Power 1.9 V Pentium®, SPGA package | | 133,166, 233 MHz Pentium or 300 MHz AMD K6 | | | | Memory | DRAM 3.3 V, Self Refreshing Low Power EDO | | L2 Cache: 512 kB Synchronous Pipelined Burst SRAM | | | | Video | Chips & Technologies® 65550 graphic processor | | Resolution: 1024 x 768 x 256 colors | | 32-bit graphics engine with BitBLT | | 2 MB, 3.3 V, EDO DRAM | | Simultaneous CRT / Flat Panel capability | | | | I/O | Serial | | Supports 4 UARTs COM1-COM4 | | Software compatible with NS16C550 | | COM1, 3 & 4 are RS232 standard | | COM2 is RS232 or 110Kbits/s Infrared | | Accessible via onboard headers | | Parallel | | 1 bi-directional port (LPT1) with PC/XT, AT, PS/2, EPP and ECP operations | | Hard Disk | | Onboard 2.5" low power Hard Disk | | Enhanced IDE | | Onboard Flash Disk up to 96 MB | | Floppy Disk | | Supports two 3.5" floppy disks from 720 kB to 1.44 MB | | Software compatible with N82077 | | Brought to docking and onboard connectors | | PCMCIA | | Provides PC Card™ / CARDBUS supports | | Supports 3.3 V or 5 V cards | | 4 TYPE I or II slots, or 2 TYPE III slots | | Texas Instruments PCI 1220 Controller | | Display integrated into replaceable module | | Display integrated into replaceable module | | | | Keyboard and Mouse | Supports Mini DIN AT keyboard and PS/2 connector | | | | Clock & Calendar | Real-time clock with battery backup | | | | Sound, Audio & Voice | Sound Blaster™ and Windows Sound System (WSS) compatible hardware | | Mic-in and stereo Line-out through docking, shrouded header or 3.5 mm diameter phone jack | | PC speaker output | | | | BIOS and Software Features | Award MobilePRO™ | | Chips & Technologies Video BIOS | | Boot Block Flash BIOS | | Advanced Power Management | | Kontron Proprietary Power / Thermal Management | | Full On, Doze, Sleep and Suspend Modes | | Supports SMI / SMM Power Management | | Supports SMBus to battery | | Plug & Play peripheral support | | | | | | | External Connectors | Power Input | | 4-pin, 2.54 mm header or 6.4 mm diameter Power Jack | | Battery | | 6-pin, 2.54 mm header | | Docking | | 200-pin R/A Industry Standard | | Incl. Secondary IDE Port, Keyboard, Mouse, COM1&2, VGA, Floppy, USB, LPT1, Power, Sound | | Serial Ports (4) | | 10-pin, 2.54 mm shrouded header | | Mouse Ports | | 20-pin, 2.54 mm shrouded header | | SVGA output | | 20-pin, 2.54 mm shrouded header | | Flat Panel | | 50-pin, 2.54 mm straight header | | Audio Port | | 10-pin, 2.54 mm shrouded header | | PCMCIA Ports (2) | | 136-pin receptacle | | | | Board Dimensions | 8.50 in. by 6.10 in. | | 215.9 mm by 154.9 mm | | | | Operating Temperature | 0°-60° C, ambient, assuming adequate cooling | | | | Non-Condensing Relative Humidity | 5% to 95% | | | | Electrical / Mechanical | PCI specification Rev. 2.1 (Electrical) | | Compliant with 1995 PC Card Standard | | | | Input Power | 12 - 18 VDC /12 W full operation | | 12 VDC: Duracell® Smart Battery DR36 or equivalent | | | | Battery Operation | Operating Time | | 6 hours typical | | Actual operating time depends on power management modes invoked utilizing 43 Wh-rated battery | | Accepts 12 V Lithium-ion (Li Ion) and Nickel Metal Hydride ( NiMH) batteries | | | | Smart Charging | Charging | | <3 hours, smart profile, continuous with full operation | | Source | | 12 - 18 VDC input power | | Charging Parameters | | Temperature, current and voltage conditions | | | | MTBF | >60.000 hours | | | | Operating System Compatibility | PC and MS-DOS™ | | Windows® NT | | Windows® 95/98 | | Consult factory for other Operating Systems | | | | Warranty Period | Two years | | | |
