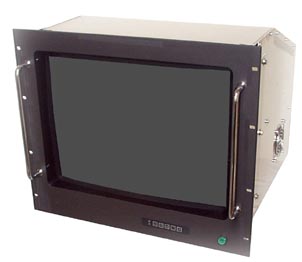

| CRT Tube | RM 15 | RM 17 | RM 19 |
| Resolution/ Pitch | 1280 × 1024/ 0.26mm | 1600 x 1200/ 0.26mm | 1600 × 1200/ 0.26mm |
| Dimensions 1. Body (H x W x D) 2. Frontpanel (W x H) | 19" 7HE 295 x 350 x 382 mm 483 x 310 mm | 19" 8HE 344 x 390 x 413 mm 483 x 355 mm | 19" 9HE 376 x 442 x 467 mm 483 x 399 mm |
| Bandwidth | 80 MHz (-3dB) | 135 MHz (-3dB) | 135 MHz (-3dB) |
| H-Frequency | 30 to 69 kHz | 30 to 95 kHz | 30 to 95 kHz |
| V-Frequency | 50 to 120 Hz | 50 to 150 Hz | 50 to 150 Hz |
| Controlled by | analog VGA | analog VGA | analog VGA |
| Power Supply | 100 - 240 VAC | 100 - 240 VAC | 100 - 240 VAC |
| Power Consumption | max. 85 W | max. 120 W | max. 120 W |
| Active Area | 250 x 185 mm² | 310 x 230 mm² | 365 x 275 mm² |
| Operating Temperature | 0 to +50°C | 0 to +50°C | 0 to +50°C |
| Storage Temperature | -20 to +60°C | -20 to +60°C | -20 to +60°C |
| Input voltage | 100 to 240 VAC | 100 to 240 VAC | 100 to 240 VAC |
| Power Consumption | max. 85 W | max. 85 W | max. 85 W |
| Humidity | max. 90% non condensing | max. 90% non condensing | max. 90% non condensing |
| Protection Class | IP 54 | IP 54 | IP 65 |
| Weight | 14 kg | 21 kg | ~25 kg |
| EMV / Standard | EN50081-2 EN50082-2 | EN50081-2 EN50082-2 | EN50081-2 EN50082-2 |
The CE mark approves the conformity with all applicable standards of the European Community.
