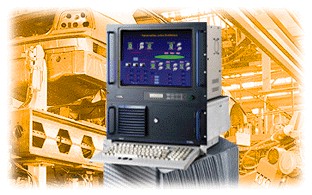

KPR III

Technical Information

	Preconfigured solutions for automation, telecommunications, security
	All configurations with CE approval
	Revolutionary design concept E-PAC^®
	Mainboard or backplane solutions

Mainboards

	Pentium^® II based
	Processors: Pentium^® II 450 MHz
	2nd Level Cache: 512 kB on-chip
	RAM: 32 to 256 MB
	Slots full length: 1 x ISA, 3 x PCI, 1 x Shared, 1 x AGP
	Connectors: PS/2 Mouse, PS/2 Keyboard, 2 x USB, 1 x par., 2 x serial

	Pentium^® based
	Processors: Pentium^® 200, 233 MHz
	2nd Level Cache: 256 kB on-board
	RAM: 16 to 256 MB
	Slots full length: 1 x ISA, 4 x PCI, 1 x Shared
	Connectors: PS/2 Mouse, PS/2 Keyboard, 2 x USB, 1x parallel, 2 x serial

Passive Backplane: PICMG CPU Versions

	PCI 936
	Pentium^®233 - SCSI 2 - 100 BaseT
	2 serial, 1 parallel, 2 USB
	PCI 943
	Pentium^®II/ 400 - SCSI 3 - 100 BaseT
	2 serial, 1 parallel

	PCI 945
	Pentium^®III/ 500 - SCSI 3 - 100 BaseT
	2 serial, 1 parallel
	PCI 946
	Celeron™/ 433 - SCSI 3 - 100 BaseT
	2 serial, 1 parallel

Backplanes

	10 Slot
	Slots full length: 6 x ISA, 2 x PCI, 1 x Shared
	14 Slot
	Slots full length: 9 x ISA, 3 x PCI, 1 x Shared

	14 Slot PICMG
	Slots full length: 6 x ISA, 3 x PCI
	Slots half length: 3 x PCI

Power supplies

	AC
	Input Ratings: 115/230 V; 115/230 V UPS
	Power Output: 275 W; 220 W/6 Ah

	DC
	Input Ratings: 24 V; 24 V UPS; –48 V
	Power Output: 250 W; 160 W/0,9 Ah; 300 W

Up to 4 Drive Bays

	accessible 2 x 5,25", 1 x 3,5"
	non accessible 1 x 3,5", 2 x 1,8"

Mass storage

	Floppy Disk 1,44 MB
	IDE-Devices: LS120 Floppy Disk 1,44, 120 MB; CD-ROM 24x, ATAPI; Hard Disk 2,5/4,5/6,5 GB; Flash Drive 10/20 MB
	SCSI-Devices: Hard Disk 4,5/9,0 GB; CD-ROM 14,4x, SCSI-II; MO Drive 640 MB; Removable HDD 4,5/9,0 GB

Mechanical Data

	Width: 19" x 4 U x 453 mm
	Weight: approx. 13 kg

Temperature (IEC 68-2-1, 2, 3, 14)

	non-operating: -30 ºC - +70 ºC
	operating: 0 ºC - +50 ºC

Humidity (IEC 68-2-1, 2, 3, 14) (non-condensing)

	non-operating: 10 - 90%
	operating: 20 -90%

Shock (IEC 68-2-27, DIN EN 60068-2-27)

	non-operating: 30 g, 11 ms
	operating: 15 g, 11 ms

Vibration (IEC 68-2-6, DIN EN 60068-2-6)

	non-operating: 10-58 Hz/+0.15 mm, 58-500 Hz/2 g
	operating: 10-58 Hz/+0.075 mm, 58-500 Hz/1 g

Protection class/EMV/MIL

	IP 30 or IP 54, IEC 529, EN60529, DIN VDE 40050. EN50081-1 a. 2, EN50082-1 a. 2, TÜV/GS, VCCI, FCC, UL, CE.
	Optional: MIL-STD-810, MIL-STD-461, AMSG 788

(c)1998 Kontron Embedded Computers AG. All rights reserved. All trademarks are the property of their respective owners. Technical modifications reserved.
The CE mark approves the conformity with all applicable standards of the European Community.
