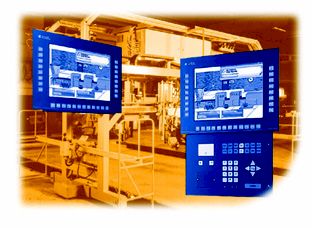

IB COM

Technical Information

	Processor: Pentium^®233
	RAM: 32..256 MB
	Cache: 256 KB
	Chipset: Intel 430 HX, Triton II

Processor card

ISA slot CPU, half length

Backplane

2 ISA slots, half length, of which 1 slot free

PC104

One plug-in module, ISA slot remains free

Video

	64 bit PCI controller for CRT and LCD
	2 MB VRAM, 1280 x 1024

Display sizes

	12.1" SVGA (TFT or DSTN)
	Display integrated into replaceable module

Protection class

IP 65 Front, IP 30 (optional IP 54) rear

Input

	Touchpad, glove operateable
	Short-stroke keyboard, 32 keys, (MF II comp.)
	Short-stroke function keys, 28 keys (programmable)

Ethernet

10 Mbit/s on board with RJ 45 connector, AUI connector optional

Solid state disk (flash RAM)

512 KB on board, 1 MB to 8 MB optional

Interfaces

	All models: 2 x serial RS232 or 1x serial RS422/485 and 1 x serial RS 232 (IRDA optional), 1 x parallel (ECP/EPP)
	In addition IB COMfort: front 1x USB and 1 x PS/2 keyboard, rear 1 x PS/2 keyboard
	In addition IB COMpact: 1 x PS/2 mouse/keyboard combi-connector, 1 x external floppy-connector

Accessible bays, front
(IB COMfort only)

1 x 3.5", 1 x 5.25" standard size

Internal bays in computer module

1 x 2.5" for hard disk

Drives

	All models: 2.5" hard disk 2 GB/3 GB/4 GB EIDE
	In addition IB COMfort: 1.44 MB/120 MB floppy, 8 GB ATAPI streamer, 32 x ATAPI CD ROM, remov. hard disks, MO-drives
	In addition IB COMpact: external 1.44 MB floppybox

Industrial features

	Watchdog timer, temperature control, current control
	Variety of PC104 modules and ISA adapters for industrial communication
	Multimedia/video expansion module

Power Supply

	115/230 VAC (85-264 VAC)
	24 VDC (20-36 VDC)

Temperature

	Enclosed case: 5-45°C operating
	Air filter case: 5-50°C operating

Weight

	IB COMpact approx. 9 kg
	IB COMfort approx. 13 kg

Dimensions (w x h x d)

	Depth behind front panel 100/70 mm
	Display module: 353x279x28mm
	Function module: 310x207x17mm
	Computer module: 307x243x100mm

(c)1998 Kontron Embedded Computers AG. All rights reserved. All trademarks are the property of their respective owners. Technical modifications reserved. The CE mark approves the conformity with all applicable standards of the European Community.
