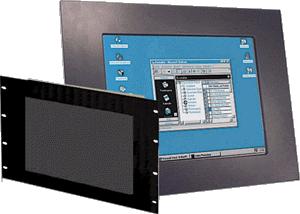

| MODEL | FM 12 P | FM 15 P | FM 12 | FM 15 | FM 18 |
| LCD | 12.1" | 15.0" | 12.1" | 15.1" | 18.1" |
| Resolution/Pitch | 800 × 600/ 0,30mm | 024 × 768/ 0,30mm | 800 × 600/ 0,30mm | 1024 × 768/ 0,30mm | 1024 x 768/ 0,28mm |
| Colors | 262144 | 262144 | 262144 | 262144 | 16.7 Mio |
| Backlight/ MTBF | 2 x CCFT/ 30000h | 2 x CCFT/ 25000h | 2 x CCFT/ 30000h | 2 x CCFT/ 25000h | 2 x CCFT/ 50000h |
| Brightness | 250 cd/m² | 200 cd/m² | 250 cd/m² | 250 cd/m² | 250 cd/m² |
| Dimensions | 409 x 318 x 60 or 19" 6HE | 409 x 318 x 60 or 19" 7HE | or 19" 6HE | or 19" 7HE | or 19" 9HE |
| 1. Body (HxWxD) | 273 x 380 x 50 mm | 273 x 380 x 50 mm | 231 x 308 x 71 mm | 285 x 371 x 77 mm | 338 x 417 x 97 mm |
| 2. Frontpanel (WxH) | 409 x 317 mm | 409 x 317 mm | 483 x 266 mm | 483 x 310 mm | 483 x 399 mm |
| Bandwidth | 30 MHz (-3dB) | 40 MHz (-3dB) | 140 MHz (-3dB) | ||
| H-Frequency | 35.2 kHz | 31.5 to 68.7 kHz | 30 to 90 kHz | ||
| V-Frequency | 56 Hz | 60 to 85 Hz | 55 to 120 Hz | ||
| Interfaces | Panellink | Panellink | 15-pin HD DSUB | 15-pin HD DSUB | 5 BNC |
| Controlled by | SXGA board 4 MB | SXGA board 4 MB | analog VGA | analog VGA | analog VGA |
| Power Supply | via PCI board | via PCI board | 10 - 14 VDC | 11.4 - 12.6 VDC | 90 - 253 VAC |
| Operating Temp. | 0 to + 40°C | 0 to + 40°C | 0 to + 40°C | 0 to + 40°C | 0 to + 45°C |
| Storage Temp. | -25 to + 60°C | -25 to + 60°C | -25 to + 60°C | -25 to + 60°C | -25 to + 60°C |
| Protection class | IP 65 Front | IP 65 Front | IP 65 Front | IP 65 Front | IP 65 Front |
| EMC/ Standard | EN500081-2 EN500082-2 | EN500081-2 EN500082-2 | EN500081-2 EN500082-2 | EN500081-2 EN500082-2 | EN500081-2 EN500082-2 |
| Weight | ~7 kg | ~7,3 kg | ~8 kg | ~8 kg | ~ 8,4 kg |
