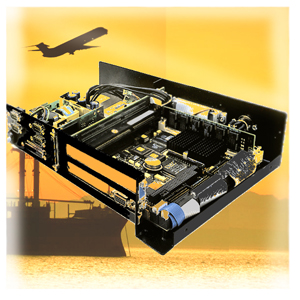

|  | | Technical Information |  |  | 586, Pentium IPC System | | AC or DC operation | | UPS | | Ethernet, XGA, EIDE Drive, CD-ROM | | Long distance LCD support | | | | |
| |
| | MODEL | VIPER 808 | VIPER 821 | | SBCS | 586 -133 | 233 MHz | | CPU Cache | -- | 512 KB | | I/O | 1 parallel (Ecp/EPP), 1 Floppy, PS/2 Mouse, Keyboard, COM 1 & 2: RS 232 or RS 485 | | Ethernet | 10 BaseT | 100 BaseT | | VGA | XGA | PCI CRT / LCD XGA | | Video Memory | 1 MB VRAM | 2 MB VRAM | | Video Input | -- | V-Port | | |
| |
| | Based on | half-size VIPer SBCs | | | | Backplane | 2 x ISA (1 x ISA used by SBC) | | | | Extension | 1 slot available, ISA or PC/104 | | | | Power Supply | 85...264 VDC/60W | | 5V@6A, 12V@2A, 12V@0,5A | | optional 9...18 VDC or 18...30 VDC/50W | | | | | Drives | 2,5" Harddisk EIDE (4 GB) | | Flash Disk 1...170 MB capacity | | | | Air Cooling | Without fan | | | | Dimensions | 218 x 56 x 265 (depth = ½ size) | | | | Weight | 2 kg | | | | |
| |
|  Download Datasheet
|
 | |
