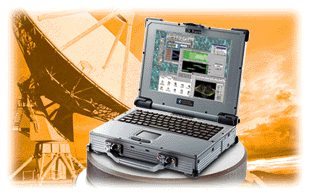

IN Rave

Technical Information

	Processor: Intel Pentium® with MMX technology
	Clock Frequency: 233 MHz, 266 MHz
	L2 Cache: 512 kB (Pipelined Burst)
	RAM: 32 MB, 64 MB, 128 MB EDO DIMM
	BIOS: Phoenix flash BIOS

LCD Display

	TFT SVGA color display, 11.3" (28,7 cm), 800 x 600 pixel, 64k colors, 180 NITS
	TFT XGA color display, 13.3"¹⁾ (33,8 cm), 1024 x 768 pixel, 64k colors

Mass Storage

	hard disk drive removable 4.3 GB or higher
	floppy disk drive 1.44 MB or optional CD-ROM drive

PC-Card (PCMCIA)

2 type I/II or 1 type III, card bus supported

Interfaces

	2 serial RS232, 1 parallel EPP/ECP,
	1 PS/2 for keyboard, 1 PS/2 for mouse
	external VGA, IRDA (Infra-Red)

VGA Interface

	internal 32-bit PCI SVGA, VESA compatible
	2 MB VRAM, external monitor
	1024 x 768 x 64 k colors or 800 x 600 x 16 Mio. colors simultaneously

Keyboard

87 keys, dust- and shower-proof Windows® 95 rubber keyboard, country versions

Status indication

8 LEDs for power, AC/IN, 2nd battery, drives, NumLK, CapsLK, SCRLK

Mechanical Data

	sealed magnesium case
	dimensions¹⁾ 310 x 70 x 255 mm
	weight 5.4 kg

Power

	AC adapter with battery charging function
	110/240 VAC, 47/ 63 Hz AC adapter, 52.5 W
	DC 10 - 20 VDC direct input without charging function (option)
	20 - 32 VDC external car adapter/charger (option)
	main battery removable & rechargeable NI-MH, with on-line charging function and hot swapping (while 2nd or 3rd battery coexists), 64 Wh total
	2nd and 3rd removable & rechargeable NI-MH battery pack in bay 1 and 2 (option)

Power management

Sleep/suspend

Dust and water protection

MIL-STD-810E 506.3 and 510.3, IP 52, NEMA 12, protected against fine dust and splash water

Temperature
IEC 68-2-1, 2, 14, MIL-STD-810E 501.3 a. 502.3

	non-operating –40 °C to +70 °C
	operating 0 °C to +50 °C (tested)
	opt. operating –20 °C to +50 °Chard disk drive removable 4.3 GB or higher

Humidity

	IEC 68-2-30, MIL-STD-810E 507.3
	5 % to 95 % RH (non-condensing)

Altitude
IEC 68-2-13, MIL-STD-810E 500.3

	operating 15 000 feet
	non-operating 40 000 feet

Shock
IEC 68-2-27, MIL-STD-810E 516.4

	operating 15 g, 11 ms, half sine wave
	non-op. 30 g, 11 ms, half sine wave

Vibration
(IEC 68-2-6, MIL-STD-810E 514.4)

	operating 10 to 55 Hz, ±0,075 mm; 55 to 500 Hz, 1 g
	non-operating 10 to 55 Hz, ±0,15 mm; 55 to 500 Hz, 2 g

Drop
IEC 68-2-32, MIL-STD-810E 516.4

1 m free drop, "survive" test (surface: concrete)

Approvals

	FCC part 15, subpart B, class B
	Safety CE, UL, CUL, TÜV

Options

	removable CD-ROM drive, 24x
	Ni-MH additional battery pack, 41 Wh for bay 1 or 2
	Sealed modules in bay 2
	COM port modules for two RS232/RS422/RS485
	SCSI-II module
	K56 modem/100 Base-T Ethernet module
	2 additional PC-Card slots in bay 2
	Expansion chassis (max. 20 W) two 3/4 ISA/PCI²⁾ slots or one 3/4 ISA/PCI²⁾ slot and one removable CD-ROM drive
	Car adapter cable, 12 VDC, (10 to 20 V), without charging function
	Car adapter/battery charger, 24 VDC, (20 to 32 V)
	External battery charger (needs additional AC Adapter)
	Cable to external FDD, backlight keyboard

1) for main housing
2) PCI available in April 1999
All specifications are tested values. Active matrix color display conforms to industry standards. Some displays may contain isolated illuminated or dark pixels caused during the manufacturing process. ©1998 Kontron Elektronik GmbH. All rights reserved. All trademarks are the property of their respective owners. Technical modifications reserved. The CE mark approves the conformity with all applicable standards of the European Community.
